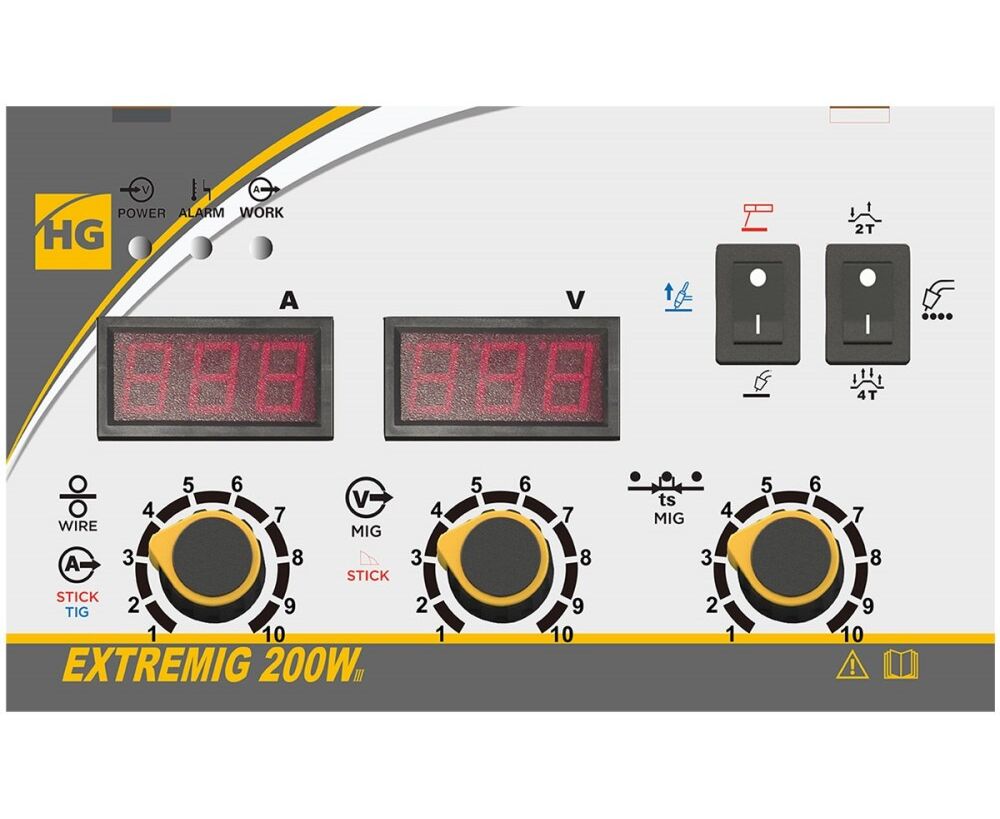

Semiautomatic inverter multifunctional welding machine 3 in 1. Compact, lightweight, easy to carry, as well as for transportation and storage. The sheet steel housing reliably protects internal elements from damage. Ideal for welding carbon, low-alloy and stainless steels. Designed for semi-automatic gas shielded welding (MIG/MAG), flux cored wire welding (FCAW), as well as manual coated electrode arc welding (MMA) and argon arc welding (TIG). The device has overload protection, overheating and malfunction indicator, providing a high level of safety and reliability of the device. This device also has protection against power surges. High open circuit voltage ensures easy ignition of the welding arc. High stability of welding in real time. Simple, intuitive controls, display of welding voltage and current, network indicator, inverter technology based on the latest IGBT transistors, adjustable Arc Force. Torch operating modes 2T/4T, spot welding, built-in 2-roller feed mechanism, quick polarity change. Built-in thermal protection, overheat indicator.
Specifications:
• Manufacturer: Hugong
• Type: inverter
• Welding current: 200 A (ММА 30-170А, MIG 40-200А, TIG 20-200А)
• Welding modes: MIG/MAG, SPOT, FCAW, MMA, Lift TIG
Additional characteristics:
• Voltage: 220V ± 15%
• Voltage adjustment for MIG: 15.5-24 V
• 30% (20°С) / 15% (40°С)
• Open circuit voltage: 68 V
• Electrode diameter: 1.6-4 mm
• Electrode diameter TIG: 1-3.2 mm
• Wire diameter: 0.6-1 mm
• Maximum power: 7.92 kVA
• Protection class: IP21S
• Insulation class: F
Equipment:
• Welding machine
• 3 meter cable with terminal "mass"
• Welding torch HG MIG-15, 3m
• Roller for wire 0.6/0.8 mm and 0.8/1.0 mm
• Gas hose 4 m
Physical parameters:
• Cable length: 2 m
• Size: 490х190х335 mm
• Weight: 10.5 kg
* Warranty: 2 years
* The manufacturer reserves the right to make changes in the characteristics, color, configuration and design of the product without warning. The store is not responsible for the changes made by the manufacturer.
