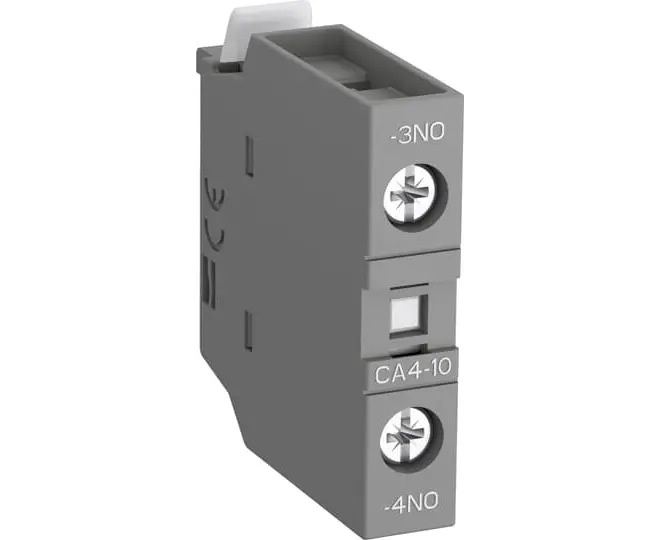

CA4-10 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AF(C)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays. CA4-10 is available with 1 N.O. instantaneous contacts for standard industrial environments.
Specifications:
• Manufacturer: ABB
Additional characteristics:
• Degree of protection: IP20
• Number of auxiliary contacts NO:1
• Rated Impulse Withstand Voltage:6 kV
• Rated Operational Voltage:Auxiliary Circuit 690 V
• Rated frequency (f) auxiliary circuit: 50 / 60 Hz
Physical parameters:
• Length: 39.5 mm
• Width: 9.9 mm
• Depth: 43 mm
• Weight: 0.014 kg
* The manufacturer reserves the right to make changes in the characteristics, color, configuration and design of the product without warning. The store is not responsible for the changes made by the manufacturer.
